HOWO HW76 8×4 Dump Truck · 371 hp
A refurbished HOWO HW76 8×4 dump truck configuration with a 371 hp remanufactured engine, a 10-speed or 12-speed manual transmission and a 7,600 × 2,300 × 1,500 mm grid-pattern dump body.
Choose a HOWO HW76 configuration

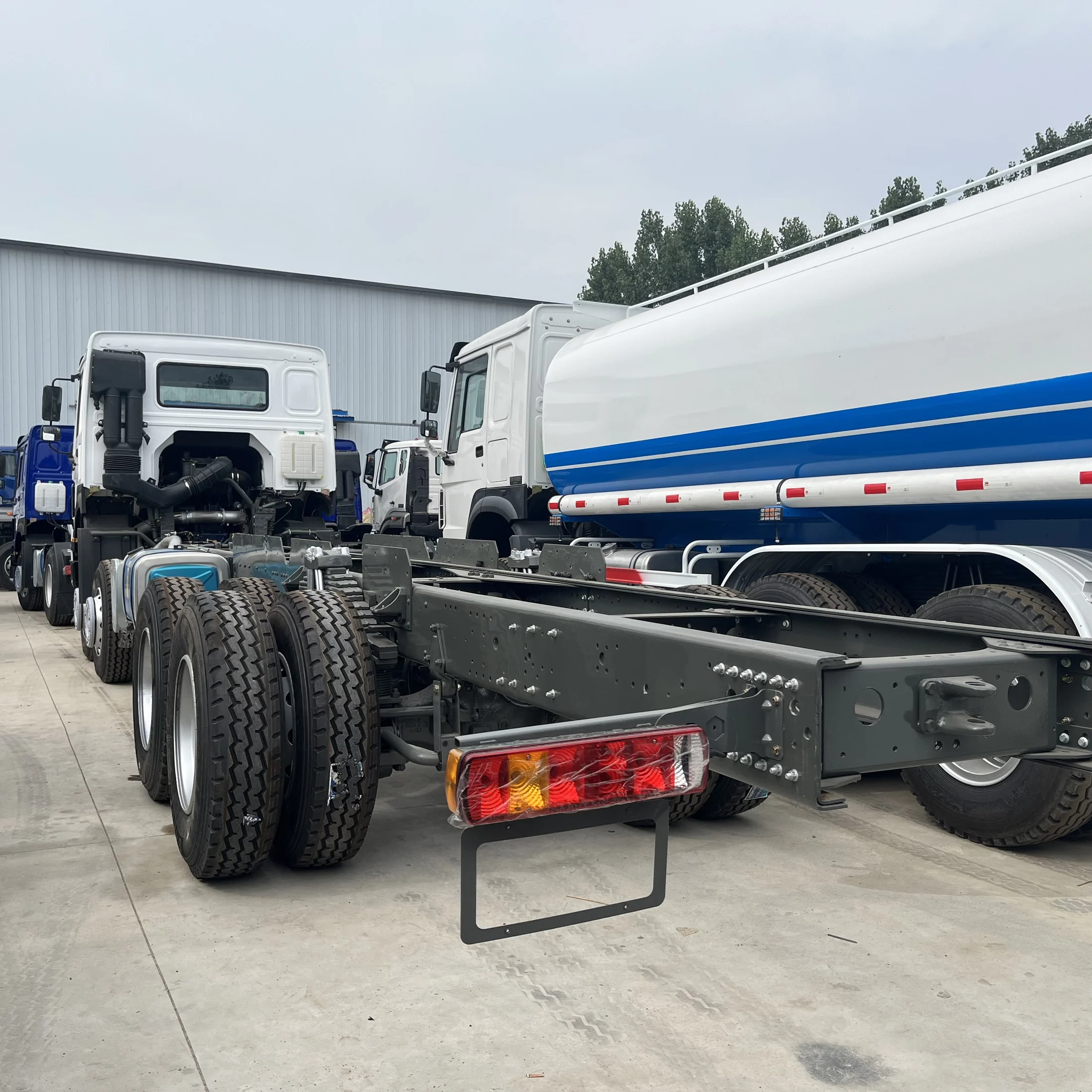

FACTORY PHOTO · HOWO HW76 8×4
Configuration overview
This HW76 configuration combines an 8×4 chassis layout with a 371 hp remanufactured engine and a grid-pattern dump body. The supplied specification lists an E2 emission standard, mechanical suspension with 11/11/12 spring leaves, a 16,000 kg AC16 or HC16 rear axle, 12 new tubeless tires and ABS. The cab is a remanufactured HW76 flat-top single-berth type.
Technical specifications
| Model / drive | HOWO HW76 8×4 dump truck |
|---|---|

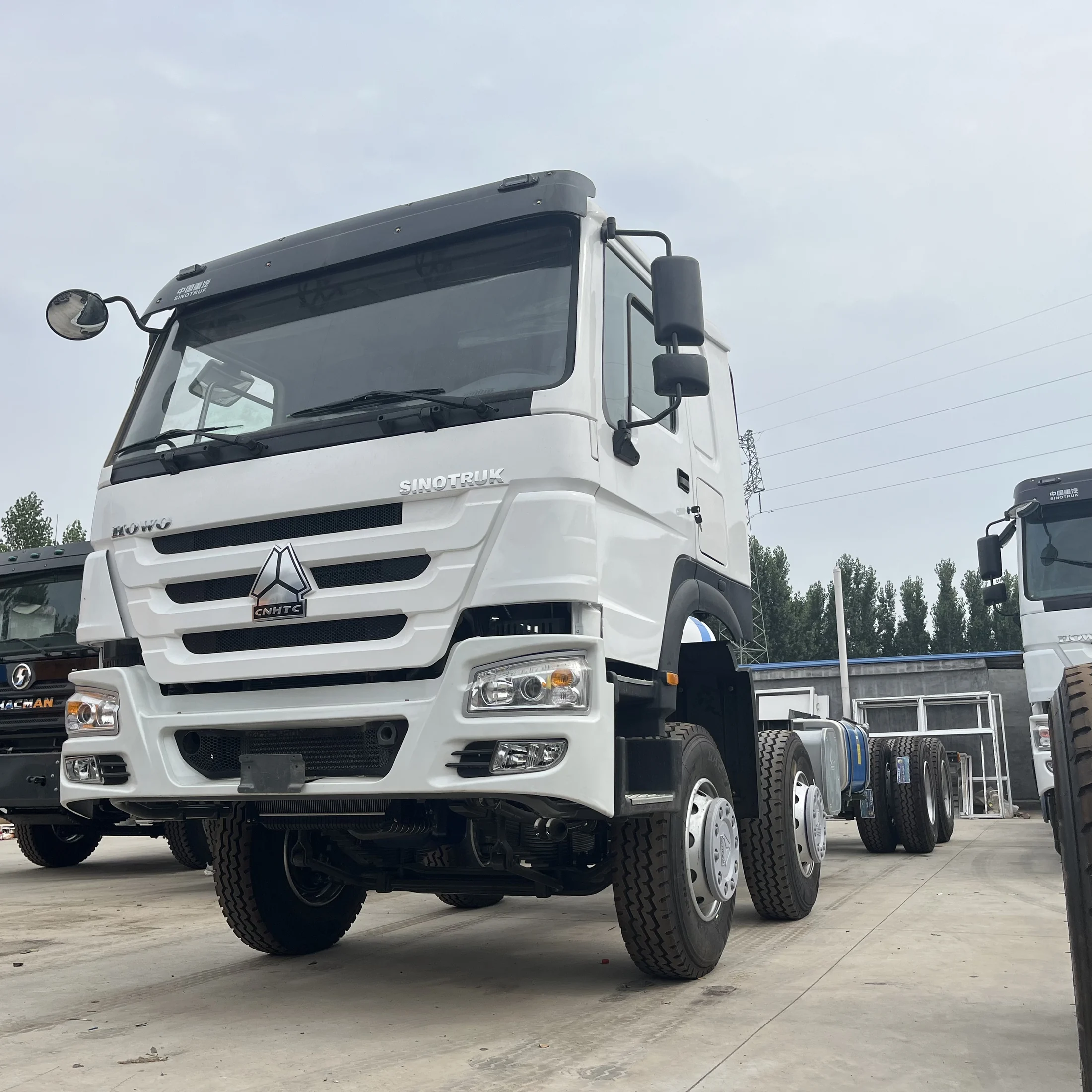

| Cab | All-new remanufactured HW76 flat-top, single-berth cab |

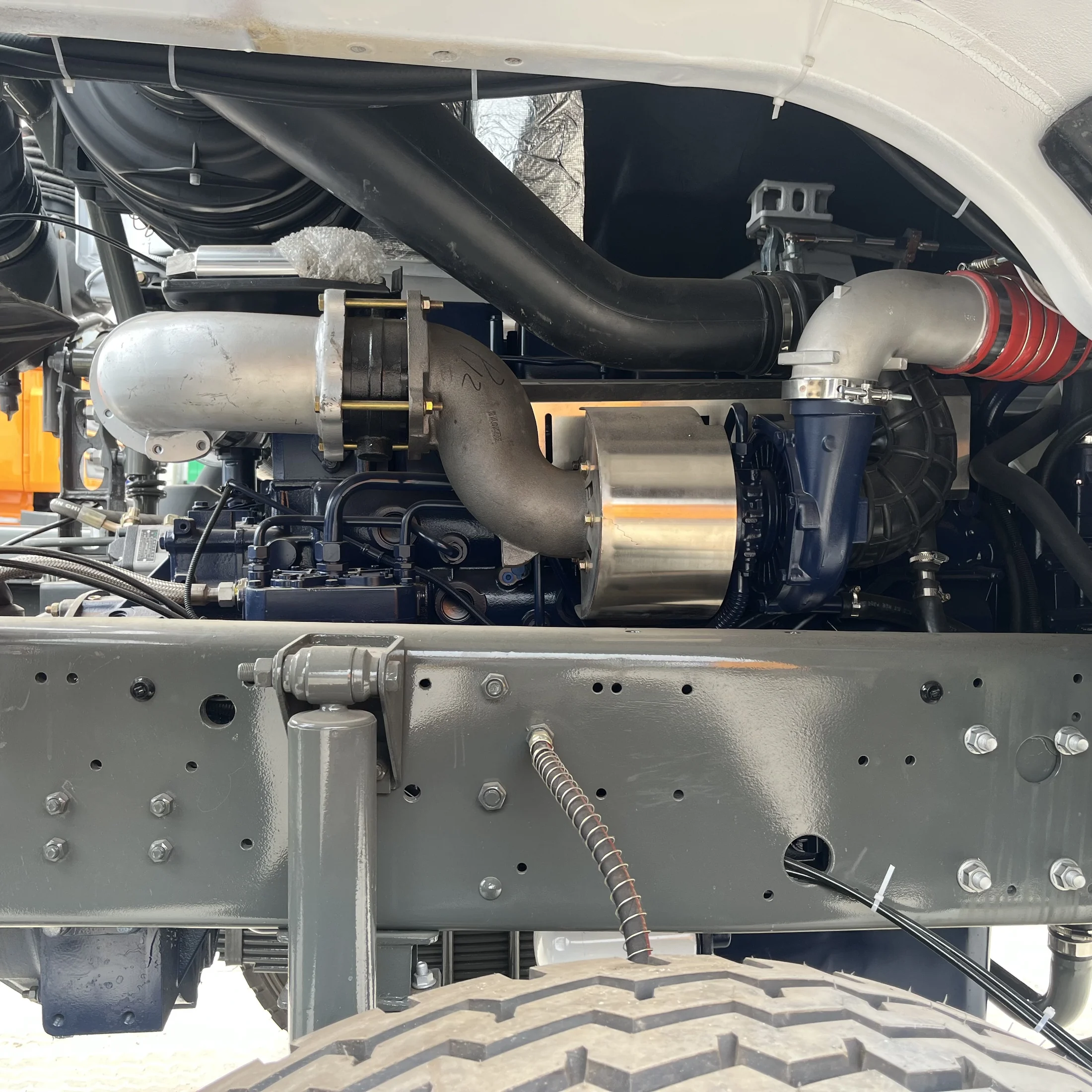

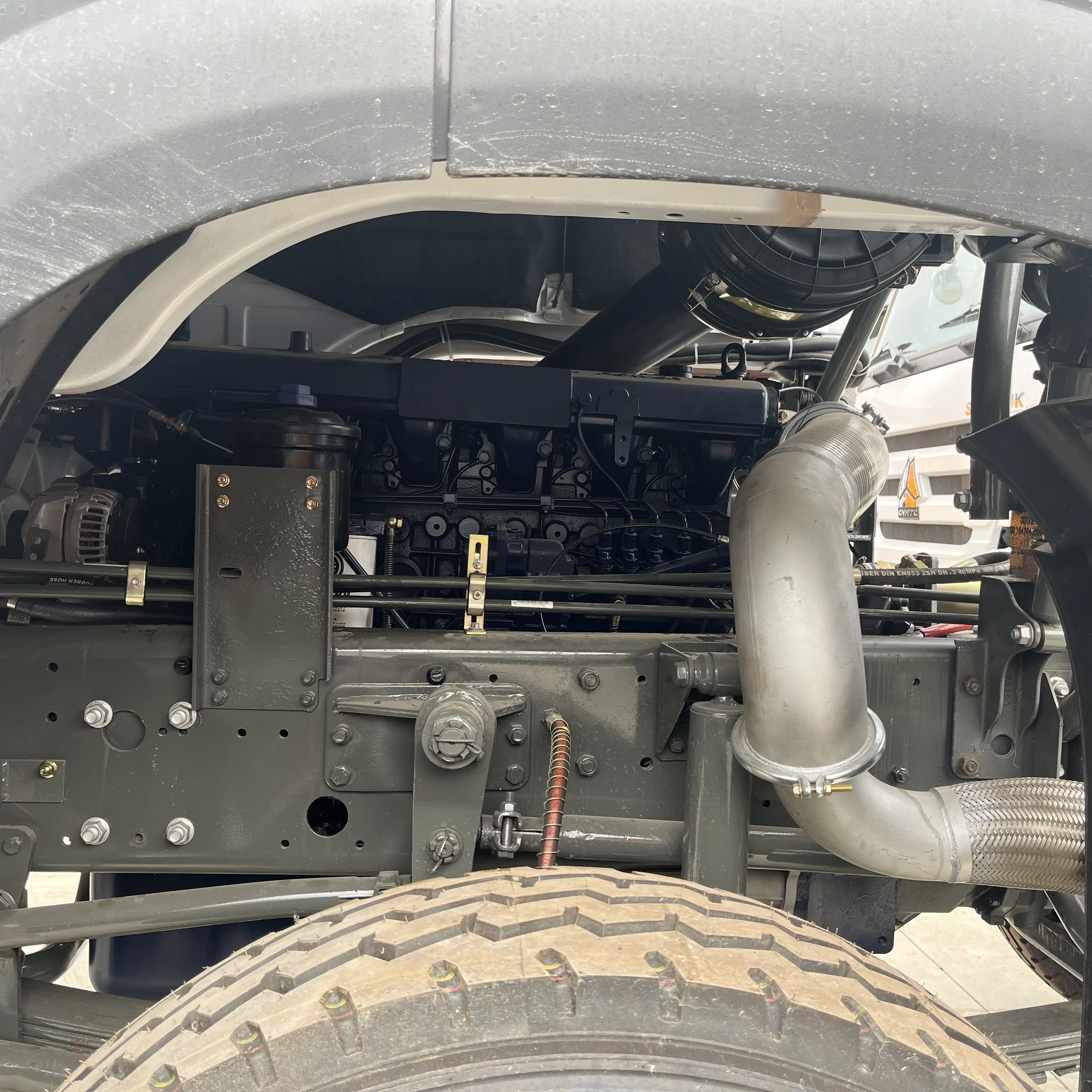

| Engine model / power | SINOTRUK · 371 hp newly remanufactured engine |
| Engine fluids | New engine oil and antifreeze |
| Transmission model | SINOTRUK |
| Transmission | Newly remanufactured manual transmission · 10-speed / 12-speed · new transmission oil |
| Emission standard | E2 |
| Overall dimensions | 10,745 × 2,496 × 3,450 mm |
| Wheelbase | 1,800 + 3,800 + 1,350 mm |
| Track width | Front: 2,020/2,022 mm · rear: 1,830/1,830 mm |
| Frame | Refurbished frame |

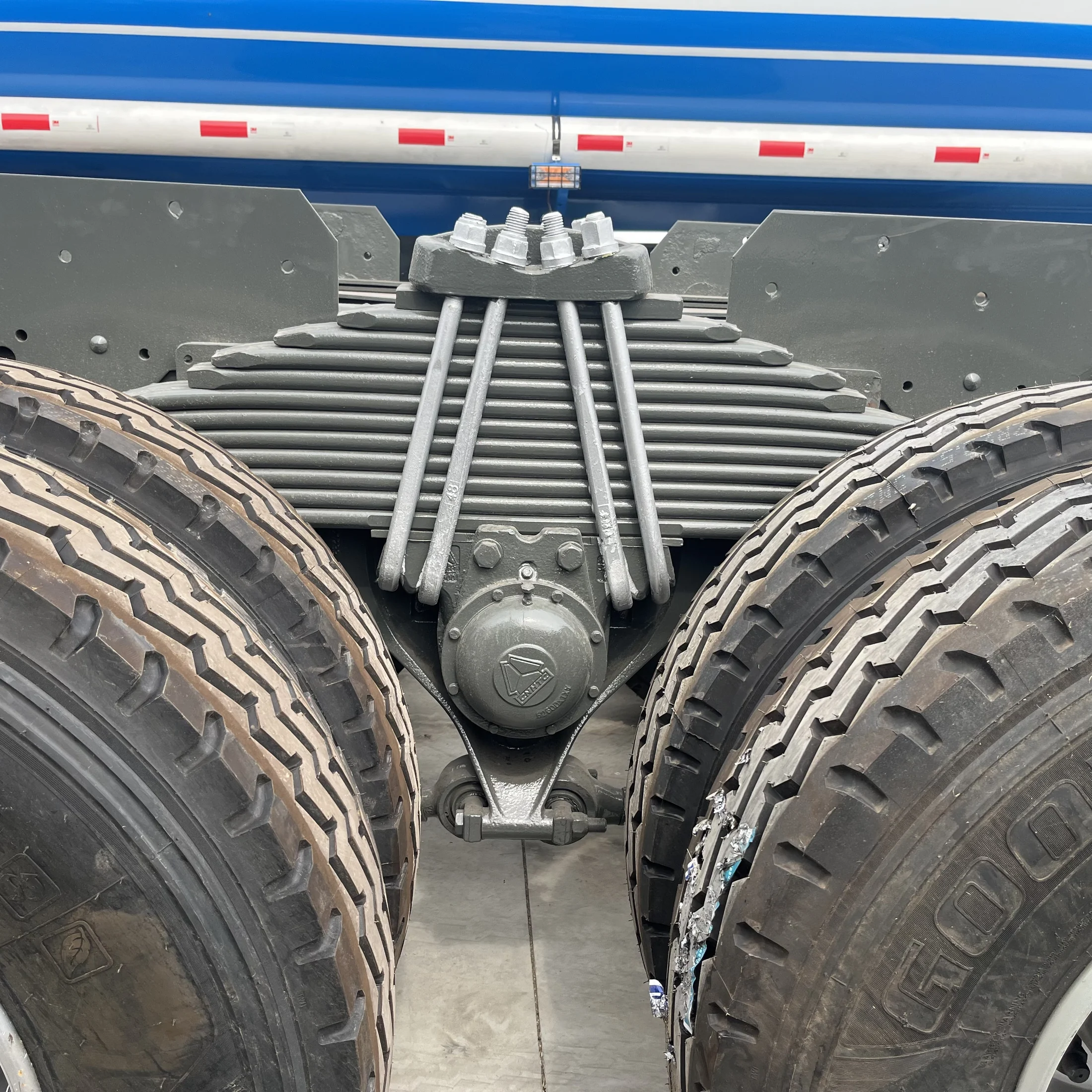

| Suspension / spring leaves | Mechanical suspension · 11/11/12 leaves |

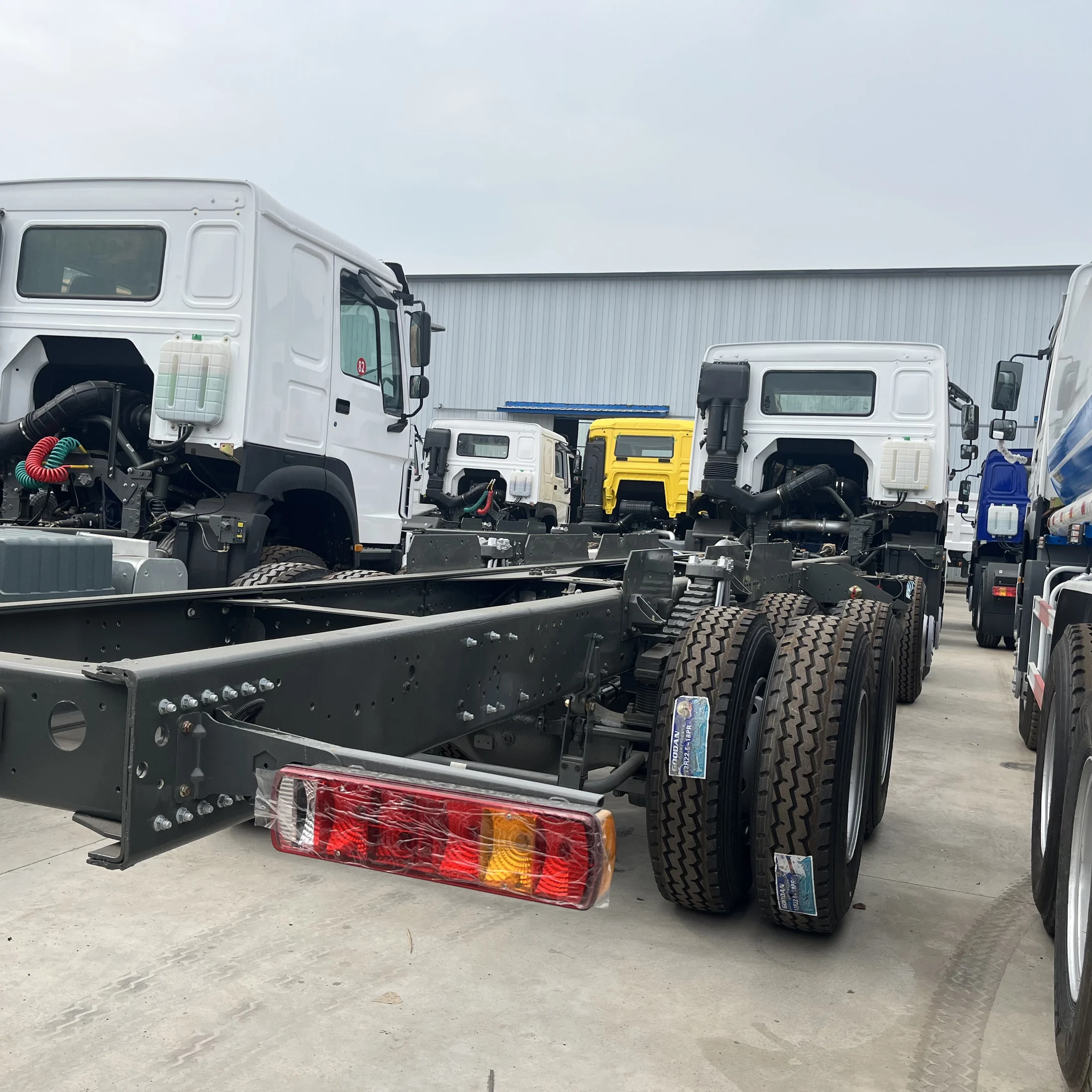

| Rear axle | AC16 / HC16 · 16,000 kg load capacity |
| Dump body | Grid-pattern body · 7,600 × 2,300 × 1,500 mm |

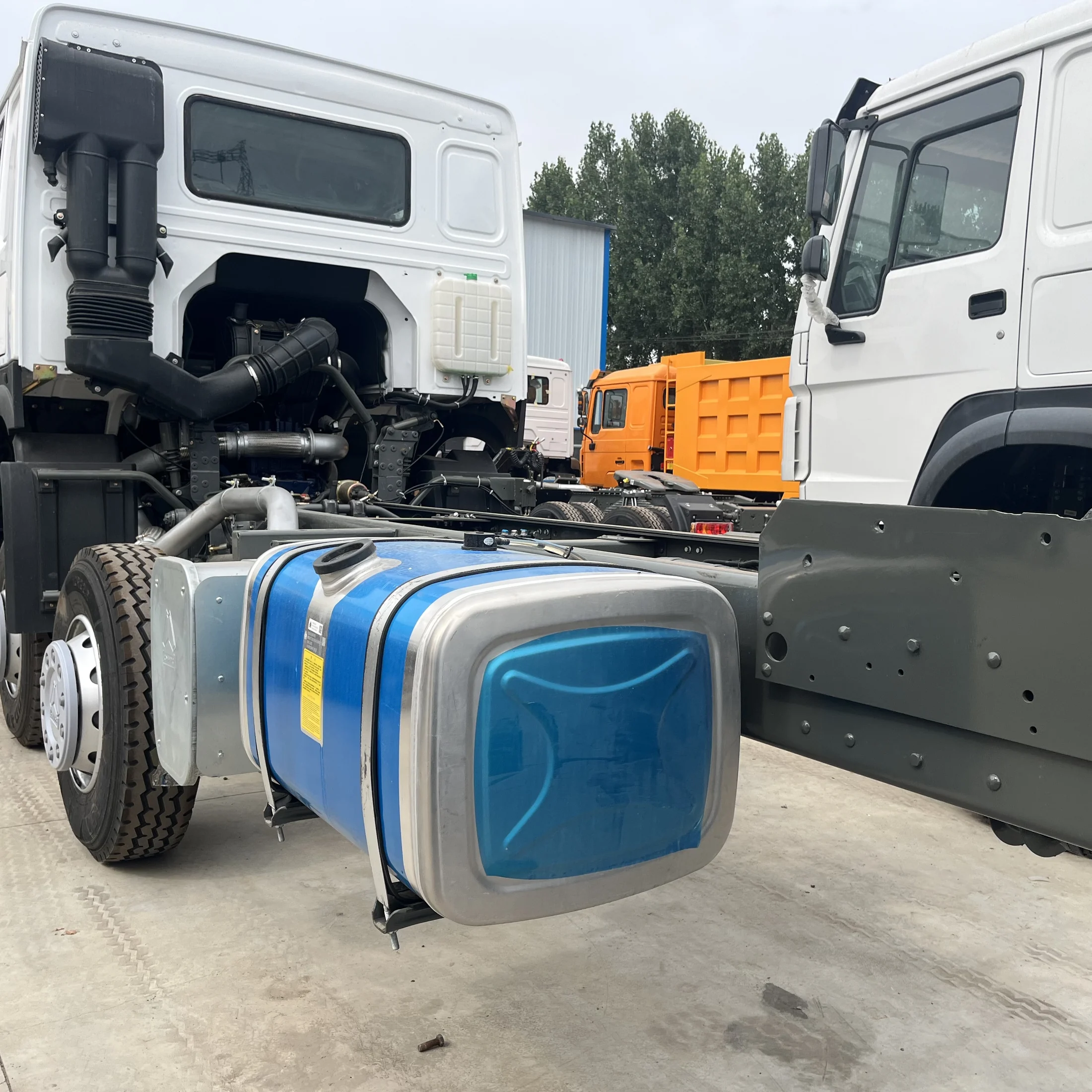

| Fuel tank | 300 L |
| Curb weight | 15,400 kg |
| Tires | 12 new tubeless tires |
| ABS | Yes |
Major replacement and service items
- Electrical system overhaul
- Replace air circuits and air reservoirs
- Replace gear-shift and throttle cables
- Replace intercooler and radiator
- Replace clutch and pressure plate
- Replace intake, exhaust and flexible connections

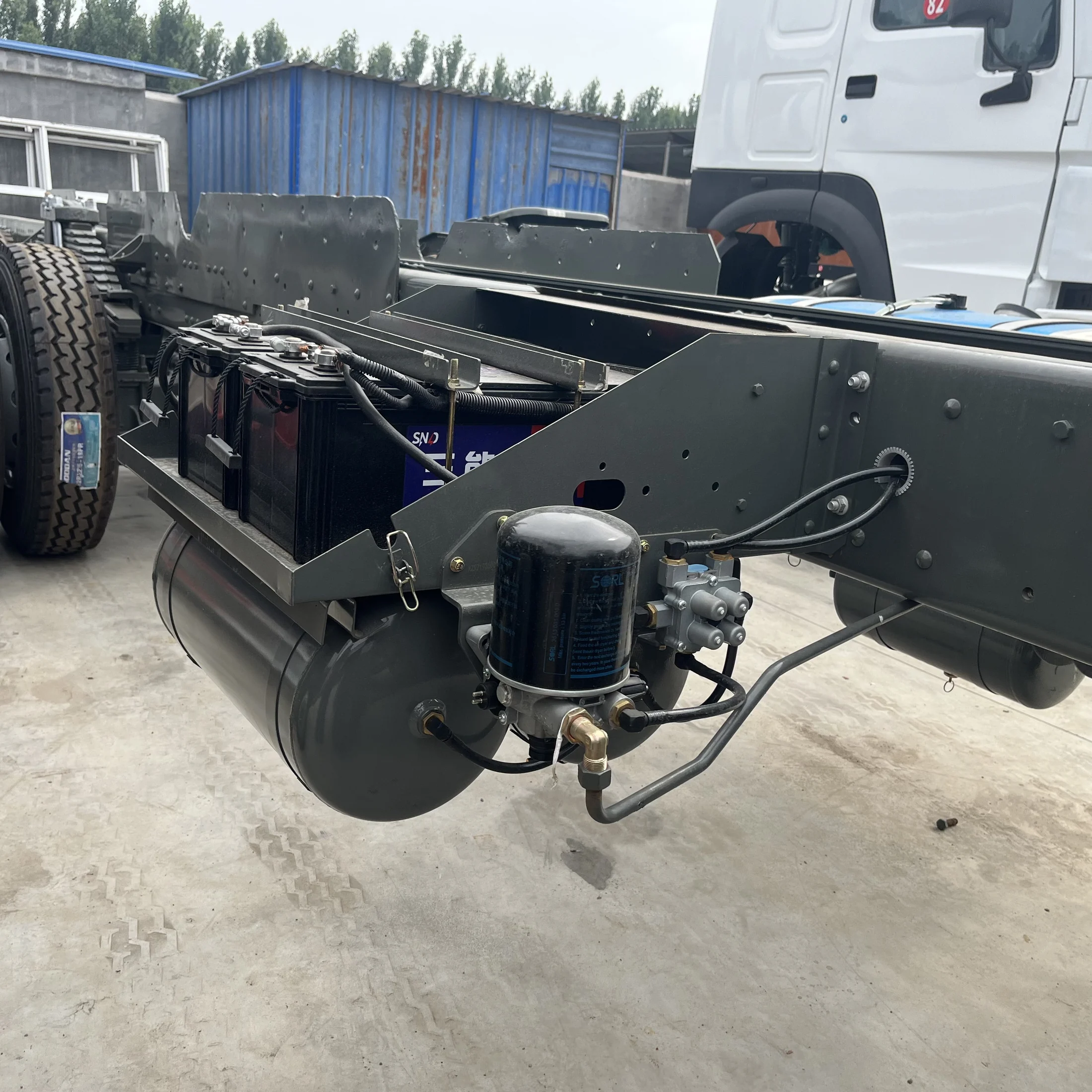

- Install a new battery and battery bracket
- Install new brake wheel cylinders
- Replace vehicle filters and air-line dryers
- Replace aged or damaged rubber bushings and bump stops
- Overhaul steering-rod ball joints; replace damaged parts or parts with excessive play
- Renew rear-axle oil seals, axle oil and gear oil; replace brake pads; inspect differential operation
