HOWO NX · DUMP TRUCK · MODEL REFERENCE
HOWO NX 6×4 Orange Dump Truck
A detailed model reference for the orange HOWO NX 6×4 dump truck. The specification below follows the published HOWO NX 6×4 dump-truck configuration. CRTA helps buyers match the required work scope, verify the refurbished unit record and confirm destination-market requirements.
MODEL AT A GLANCE
PUBLISHED MODEL CONFIGURATION
Full technical specifications
This is a model-level reference. The signed order sheet and inspection report should identify the actual remanufactured unit and its selected components.
| Vehicle / chassis model | Dump truck · ZZ3257V364JB1 |
|---|---|
| Drive / running gear | 6×4 · 3 axles · 10 wheels · left-hand drive listed |
| Cab | H77L · one sleeper · two seats · air conditioning · 4-point floating cab suspension with shock absorbers · adjustable driver’s seat · safety belts · adjustable steering wheel · air horn · sun visor |
| Engine | 371 hp · 4-stroke direct-injection diesel · inline 6-cylinder · water-cooled · turbocharged and intercooled |
| Transmission | SINOTRUK HW19710 · 10 forward speeds + 2 reverse · direct PTO |
| Gear ratios | 14.28 / 10.62 / 7.87 / 5.88 / 4.38 / 3.27 / 2.43 / 1.80 / 1.34 / 1.00 · reverse 13.91 / 3.18 |
| Steering | ZF8098 hydraulic power steering |
| Front axle | VGD95 · 9,500 kg · double T-section steering beam |
| Rear axles | MCP16ZG · 2 × 16,000 kg · hub reduction · inter-wheel and inter-axle differential locks |
| Propeller shaft | Double universal-joint shaft with gear-shaped coupling flange |
| Front suspension | 11 semi-elliptic leaf springs · double-acting hydraulic telescopic shock absorbers · stabilizer |
| Rear suspension | 12 semi-elliptic leaf springs · bogie spring · stabilizer |
| Service brake | Dual-circuit compressed-air brake |
| Parking / emergency brake | Spring-energy brake, compressed-air operated on front axle and rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Electrical system | 24 V · negative ground · 5.4 kW starter · 28 V / 1,500 W alternator · 2 × 12 V / 165 Ah batteries |
| Tires | 12.00R20 radial steel-wire tires · 10 fitted + 1 spare |
| Fuel tank | 300 L |
| Dump body | 5,400 × 2,300 × 1,450 mm · 18 m³ |
| Overall dimensions | 8,600 × 2,550 × 3,450 mm (L × W × H) |
The engine model and emissions must be read from the individual vehicle identification and order documents because published export configurations vary.
SYSTEM OVERVIEW
Powertrain, chassis and dump body
CRTA BUYER ADVISOR
What to verify on a refurbished truck

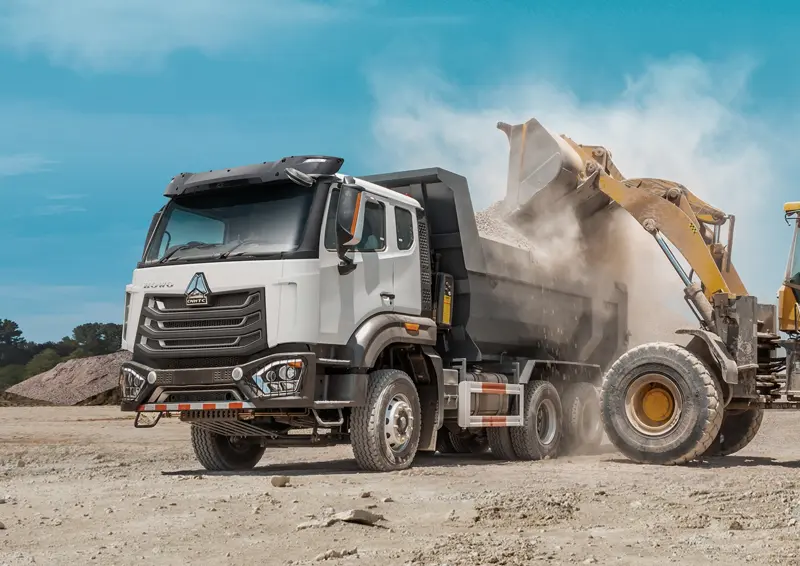

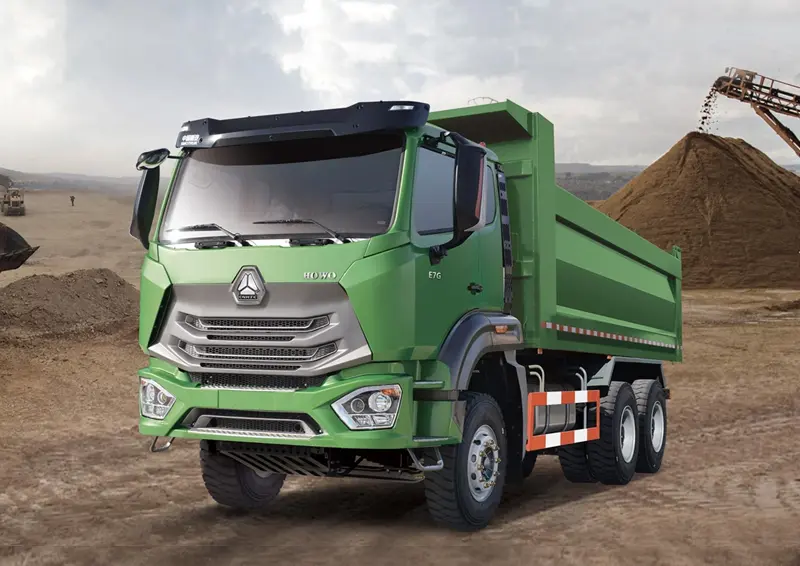

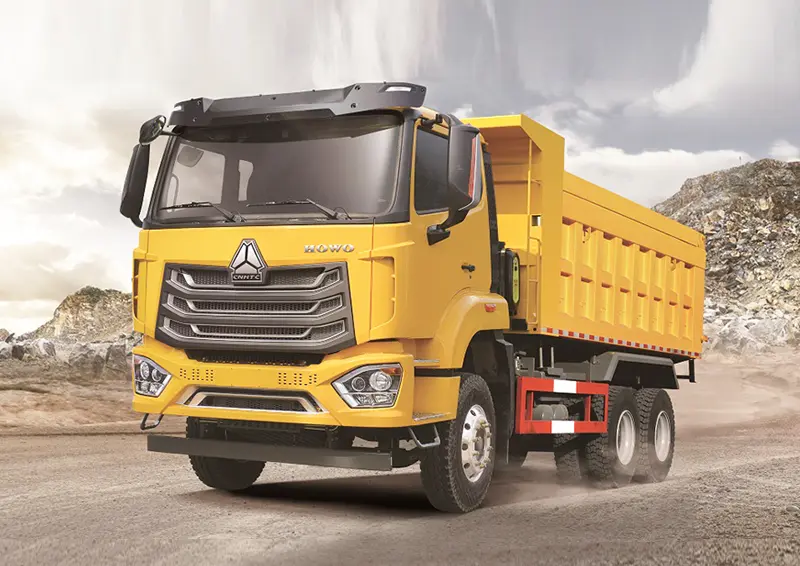

The supplied folder contains one matching orange NX photo. The additional gallery images are HOWO NX series product references, not photos of this individual refurbished truck.
